This guide is for the viewSymap user interface.

Contents
General All colors mentioned in this document are the defaults.


The Dot Plot and Circle are available from various places.
Project Manager
Dots and Circle
Chromosome Explorer
Dots and Circle


Click on any image to see the closeup.

Citation: The SyMAP User Agreement requires you to cite the following publication if you use SyMAP results in a paper, poster, or presentation.

	C. Soderlund, M. Bomhoff, and W. Nelson (2010)
	SyMAP: A turnkey synteny system with application to plant genomes.
	Nucleic Acids Res 39(10):e68. Link
	Also cite the MUMmer publication: Marcais et al. 2018 or Kurtz et al. 2004

Terminology

Chromosome
(Group)
For simplicity, sequence groups will be referred to as "Chromosome", though they may be scaffolds, linkage groups, etc. In some cases, "group" is used as a generic term in place of chromosome.
Hit (anchor) A matched sequence between two chromosomes, computed by MUMmer.
Clustered hits SyMAP clusters hits that are close or overlapping into a single hit for display; the MUMmer hits within the clustered hits are referred to as subhits.
Paired genesTwo genes joined by a hit.
Synteny blockAn approximately-collinear sequences of anchors; a block can have intervening genes which do not align. There may be small inverted regions within a block. By default, blocks have at least 7 anchors.
Collinear setA sequence of paired aligned genes with no intervening non-paired genes or inverted gene pairs. A set can consist of 2 or more genes. See details.

The following is more detailed terminology:

Cluster Hit Algorithm:
Algo1 or Algo21
During the synteny computation, either the Algo1 or Algo2 algorithm could have been selected to cluster hits.
• The original Algo1 was updated v5.4.0 to be more gene-aware but does not know exon-intron structure. The new Algo2 knows exon-intron structure, last updated v5.6.0. See System Help for details.
• The Summary specifies which was used. There are statistics in SyMAP that have different values based on which algorithm was run.
Algo1:
g2, g1, g0
A hit overlaps a gene on both sides (g2), a hit overlaps a gene on one side (g1), a hit overlaps no genes (g0). These are also written G2, G1, G0.
Algo2:
EE, EI, En, In, nn
E is exon, I is intron, n is intergenic. So a EI is a hit that at least partially aligns to an exon of one gene and an intron on the other, etc.
Gene#This is the SyMAP assigned number representing the order of the gene. When genes overlap, they are given the same gene number with different suffixes. For example, see View a region. Gene numbering starts at 1 for each chromosome.
Major or minor
assigned gene
When genes overlap, they may share hits in the overlapping regions. A clustered hit can only be assigned directly to one gene pair, which is the Major pair; the other gene pair is assigned to the hit as Minor and only shown in the Query.
Block and !Block Hits that are in a block and hits that are not within a block, respectively.

Project Manager

The display in the image on the lower right is shown when the following is executed from the terminal:
   ./viewSymap
Is it also available from ./symap, which will include the alignment commands.

All projects in the database will be listed on the left panel. The date beside the project name is when it was loaded. If a [n] follows the date, it is part of n computed syntenies.

Selecting projects on the left panel shows them on the right panel. Clicking the View popups a window with the information about the project.

A check mark (✓) in the Available Syntenies table indicates the pair has computed synteny that can be viewed.

Project Manager
viewPlants
Display for Selected Pair By selecting a cell with synteny, these views are activated for the selected synteny. Views Circle, Dot Plot, Block, and Summary.
Display for All Pairs These views will be applied to all checked syntenies. Views Chromosome Explorer, Dot Plot and Queries.

Displays for Selected Pair (Two-genome views)

Circle Dot Plot Block Summary Go to top

Select a cell in the Available Syntenies table (see upper right image); it will turn green and the buttons beside the Display for Selected Pair will be enabled. These are whole genome displays.

Circle Display #1 (Two Genome)

Control Panel Colors Go to top
The two-genome and multi-chromosome Circle displays work the same; see Explorer for the chromosome Circle display.

The Circle display shows the chromosomes arranged in a circle, with synteny blocks shown as colored blocks between the chromosomes. The color of a block comes from one of the two chromosomes it connects; for example, in the image below, the A.thal Chr05 color arc is orange and the corresponding blocks are orange.

Project name: Move the mouse over a project name and click once: The project name will be in shown in bold italics and the projects colors will be used for the blocks.

For example, in the image on the right, A.thal is in italics and all the block are colored with its arc colors; click Cabbage and the block will be colored with its arc colors.

Chromosome color arc: Move the mouse over an arc, followed by:

1.Click: The blocks from the chromosome will be shown in front.
2.Double-click: Only the blocks of the selected chromosome will be shown. To undo, click an arc or a project name.
circle-two-genome

Circle Control Panel

circle controls

First group of buttons:

Home Takes the display back to its original display settings, i.e. for all buttons up to the the first "|".
Plus Increase the circle size.
Minus Decrease the circle size.
Rotate Right Rotate the circle clock-wise.
Rotate Left Rotate the circle counter-clock-wise.
Rotate Toggle: Rotate the text to face the circle. Un-toggled: As shown in the above image.
Scale Toggle: Draw the chromosomes proportionately to their actual length in basepairs.
Un-toggled: Each species is allocated the same amount of space, e.g. for two species each one gets exactly half the circle.

The All blocks (default) popup menu has:

All blocksShow all blocks
InvertedOnly show the inverted blocks
Non-invertedOnly show the non-inverted blocks
Two-colorColor the blocks as inverted=green, non-inverted=red.

Remaining buttons:

Self-align (If self-synteny has been computed) When toggled, the self-synteny blocks are shown.
Reverse (Only available for 2-genome display) When toggled, the reference will be reversed, i.e. the bottom project is shown on top and uses the reference colors (you may need to click the top projects name to use its colors).
Color Change the colors of the chromosome blocks, as described below.
Print Prints the circle graphics as displayed.
Help Displays the online help.
Info A popup window of quick help.

Circle Colors

Circle Colors Color: On Save, the color settings are saved and will be reused on subsequent circle displays. Since it is not reasonable to set colors for each ribbon, this panel gives options to tailor the circle ribbon colors to your desire.
Color Wheel Pull-down option Two-color all blocks : This brings up the Color Wheel, which allows changing the colors of the inverted/non-inverted ribbons.
All other pull-down options:
Color SetChoose from two different sets of 100 colors.
The next 4 color options alter the selected set.
ScaleSet the scale >0 and <1 to darken the colors,
>1 to lighten the colors.
OrderSort the colors so that the blue-green colors take precedence.
ReverseSort the colors so that the yellow-red colors take precedence.
ShuffleShuffle the colors. Setting a different integer will produce a different set.
circle-colors

Dot Plot #1 (Two Genome)

Control Panel Filter Go to top

Dots represent anchors (hits). A blue box indicates a Synteny Block. A chromosome pair is represented by a cell.

Clicking a cell will replace the whole genome view with the Dot Plot for the chromosome pair, as shown below.

Within the cell Dot Plot:
 • Click a block once and it will turn beige, click it again to view the 2D display of the block .
 • Or, use the mouse to define a region, which will put a box around it. Then click the box to view the 2D display.
dotplot-2g-cell

dotplot-2g

Control Panel

dotplot controls

The following buttons change the size of the display:

Home Revert the display back to full genome and its original size.
Plus Increase the dot plot size.
Minus Decrease the dot plot size.
Scale Toggle: Resizes the species displayed on the y-axis according to the current scale of the species displayed on the x-axis. Un-toggled: Each species is allocated the same amount of space.

The following also change the display:

Drop-down The drop-down menu allows the reference species on the x-axis to be changed.
Filter See Dot Plot filter below.
Color Wheel See Color Wheel, Print and Help.

Information buttons:

Help Displays the online help.
Info Popup of quick help.
Stats Popup with more detailed statistics, i.e. more detail than shown at the bottom of the display above. This text can be copied. An example popup is as follows:
dotplot stats
The (%Id=23) is what the filtered percent identity of the hits are, which can be changed in the Hit Filter.
For the 3 Annotated columns (Both, One, None), the two percentages in parenthesis are the column (Annotated) percent and row (Block Hits) percent.

Dot Plot Filter

The Filter settings are used for the duration of the given Dot Plot display. In contrast, the Color Icon settings are stored for subsequent Dot Plot displays.

As soon as a Filter option is changed, it will be reflected on the dotplot. However, no other panel can be accessed until one of the following buttons is clicked, which will close the Filter window.

SaveKeep the current settings.
CancelRevert back to the settings used when the Filter window was opened.
DefaultsReset to the defaults, which are shown in the image on the right.
dotplot filter
Hit %Identity Show all hits that have >N% identity, where the %Identity (%Id) is the MUMmer assigned value. The default label on the left starts at the lowest %Id in the plot (in this case 23%).
Dot Sizea Increase the size of the dots in the plot.
Scale dot by hita
LengthThe dot is a rectangle relative to the hit's length.
%Id The dot is scaled by the hit's %Id (Identity).
None All dots are the same size.
Show Hits
AllShow all hits.
MixShow all hits, but non-blocks hits will be displayed with size=1 and no scale.
BlockShow only hits assigned to blocks.
Gene Only
IgnoreShow all.
BothOnly show hits that have a gene on both ends to the hit.
OneOnly show hits that have a gene on one end of hit.
NoneOnly show hits that do not have a gene on either end.
Show Block
BoundaryDraw a blue rectangle around each block of hits.
BorderDraw the block number in or near the block; this only works when Boundary is also checked.
a These options can make the dots flow over the borders, see Size of dots below.

Show Empty Regions (Not shown in above image) This option is only present if at least one of the genomes displayed has >=20 chromosomes or scaffolds; this is most relevant when one genome is draft sequence, as there can be rows or columns with no blocks. When the option is deselected, it hides rows or columns that do not contain any synteny blocks.

Size of dots

When the dots are all the same size (Scale dot by hit=None and Dot Size=1), they fit inside of their respective block. However, when they are changed to rectangles or their sizes increase, they can overlap the border of their block.

This is illustrated on the right, where the filters are set the Length, Dot Size=3. The black and grey dots are non-block hits. Some of the blue block hits are on the border of the block blue box.

dotplot filter

Blocks Display (Two Genome)

The image below shows the Block display for A.thal and Cabbage. The 9 Cabbage chromosomes are color coded as shown at the top, and aligned to the 5 A.thal chromosomes. The A.thal to Cabbage block view can be viewed by selecting reverse.
block Clicking a chromosome displays a window of the chromosome as shown below; the dotted border indicates an inverted block (i.e. the majority of hits are inverted). Clicking a Block displays its 2D view.

block chr

Summary (Two Genome)

The Explain button on this view explains the different columns.

sum-two-genome


Displays for All Projects

Chromosome Explorer Dot Plot #3 Queries Go to top

From the Project Manager, select two or more projects, which will activate the Display for All Pairs buttons. Displays for all projects

Chromosome Explorer

Circle #2 Dot plot #2 2D Display Go to top

The Explorer is a two-panel display in which the left panel is used to select specific chromosomes, while the right panel shows the synteny for the selected chromosomes. Below is a snapshot of the Explorer showing the Circle, which is the initial view.

explorer

Left panel:The left panel controls which species and chromosomes are shown:

Information: As the mouse moves over various components, instructions or information for that component are shown in the Information box.

Views: The buttons in the lower-left corner of the window change the synteny view in the right panel.

Download Blocks: Exports a table of all of the synteny block coordinates for the selected species; see also Data Download.

Click the minus (-) button next to a project name or the Information box, and that section will be hidden; the minus sign will change to a plus. Click the plus (+) button to show the project or Information box.

Right panel: The right panel shows the synteny display for the species and chromosomes selected on the left. The three view for the right panel are Circle, 2D and Dot Plot. The Circle and Dot Plot are essentially overviews, while the 2D view allows zooming down to details, all the way to the basepair level.

Circle Display #2 (Multi-chromosome)

This view is illustrated in the above Chromosome Explorer image. All features are described in the first Circle section, except it is chromosome-based instead of genome-based.

Dot Plot #2 (Multi-chromosome)

All features are described in the first Dot Plot section, except that it is chromosome-based instead of genome-based. Selecting a chromosome pair (cell) from the image on the left will replace it with the Dot Plot for the cell, shown on the right. Clicking on a synteny block (or selected region) highlights it in beige, clicking it again brings up the 2D view.
Dot Plot 3chr dotplot-chr-2d

2D Display (Multi-chromosome)

Full
display
View
a region
Hovers
and popups
Control
panel
Sequence
Filter
Hit
Filter
Go to top

Full display

The 2D display is activated from the Explorer by clicking the 2D button (or by selecting a region or block from a Dot Plot).

Below is an image depicting an alignment from A.thal Chr04 to Cabbage Chr01 to B.rapa Chr02. Note that Cabbage Chr1 is the reference chromosome, hence is placed in between the others.

Each chromosome is drawn as a light-blue rectangle, called tracks. The sequence length is shown at the bottom of a track; the coordinates are displayed on the side. If the sequence has been flipped (i.e. A.thal Chr04), its sequence length is shown at the top of the track.

The gene annotations (if exists) are drawn down the middle of the rectangle in dark-blue (positive strand) and purple (negative strand). Overlapping genes are horizontally staggered.

The hits are the lines between tracks, referred to hit-wires, which connect the hit region on each sequence. Hit-wires colored brown align to the same strand on both sequences (i.e. ++,--) and light forest-green align to different strands (i.e. +-, -+).

The display colors can be changed using the Color Icon in the upper right of the Control Panel (shown at the top of the 2D display). The tracks and hits can be filtered; see Sequence Filter and Hit Filter.

2d-3chr

Annotations: Annotation data of the following types may be loaded into SyMAP and displayed.

Annotation TypeDisplay
GapsRed band across the chromosome
CentromereBlue "X" across the chromosome
Predicted genes and exons Annotation strip in center of chromosome, as described above.

View a region

The selected region shown in the image below was created by left-clicking on one chromosome near coordinate 11,638.48kb, dragging the mouse to 11,642.75kb and releasing. The Sequence Filter was set to display Annotations.

Gene annotations: The introns are drawn as thinner black rectangles. The exons are drawn as thicker rectangles, colored dark blue (positive strand) or purple (negative strand).

The staggered genes, where one is further out then the other, indicate overlapping genes; they have the same gene# with a different suffix.

Hits: The hit-wires connects the aligned regions on the two sequences. The aligned region graphics, located on the track at the end of the hit-wire, extends the length of the hit.

Clustered hits are multiple subhits clustered together with gaps in between, where the gaps are represented by a grey area.

2d-closeup
Major and Minor genes: If one end of the hit-wire aligns to multiple genes, only one gene is assigned to it, which is called the major gene. The other genes are the minor genes. In the above example, gene 1910.b is the major gene for the top hit-wire and gene 1910.a is the minor gene.

Hovers and popups

Hit Details Gene Details Hit-Gene Details Go to top

Hovering the mouse over a hit-wire or gene shows information about them in the Information box, either the box on the left side of the window (full 2D) or at the bottom of the window (2D from Dot Plot).

Right clicking on a hit-wire or gene popups a window with additional information. The information in a popup can be copied by dragging the mouse over it followed by the copy command. The popup does not go away until the OK button is selected or the SyMAP is exited. Any number of gene popups can be present.

Note: On Linux Ubuntu, the popup information windows will not stay in front, so get hidden behind the Explorer window; they can be moved to the side.

Hit Details

Information: Hovering the mouse over a hit-wire will show its information in the Information box.

Hit # The number representing the hit for the chromosome pair.
gN (N={0,1,2})
XX (X={E,I,n})
Algo1: Hit overlaps 0 gene (g0), 1 gene (g1), 2 genes (g2).
Algo2: Hit overlaps two exons (EE), exon-intron (EI), intron-intron (II), exon-intergenic (En), intron-intergenic (In).
See Terminology for an explanation of Algo1 versus Algo2.
Block #The block number (0 indicates it is not in a block).
Inv Indicates that it is part of an inverted block.
cN.M (N≥2) It is part of a collinear set of size N; M is the unique set number for the chromosome pair.
Subhits=(N≥1) The number of MUMmer hits clustered into one hit, where there may be gaps or overlaps between hits.
Id, Sim These values are from the MUMmer file. For Subhits>1, the values are approximate.
Cov The largest sum of the merged subhits between the two species.
L and RThe coordinates for the hit on the left and right tracks, respectively.
2d-hit information
2D hit wire popup

Popup: To view the popup of a hit-wire, right click on it; the hit-wire must be highlighted in red from hovering over it to be clickable. The wire and the major genes (0,1 or 2) will be highlighted magenta as shown on the upper right; the corresponding popup is shown below.

The top part of the popup is the same as the hit information shown in the image above. The bottom part shows the coordinates of the subhits:
  1. If the hits align to a gene at either end, the major gene(s) are stated.
  2. The coordinates are relative to the input genome sequences.
  3. Both lists are sorted by start coordinate.
  4. The '#' column in the two subhit tables align to each other, e.g. the rows #2 coordinates align to each other (a MUMmer hit).
  5. The sequence name that is alphabetically lower (e.g. arab<cabb) is the query and the other is the target. The query is numbered 1-N; the target is ordered to match the first.
  6. Two subhits may overlap (Gap<=0) on one chromosome but not the other, as shown on the right and in Gap vs no-gap below.
hit popup
The lower buttons are as follows:
AlignSelect to view the subhits text alignment. See Align.
Conditional:
MergeIf there are overlapping hits (Gap<=0), this button will be present.
Select to view a popup of the merged hits. See Hits.
OrderIf the '#' column for the target genome (e.g. cabb) are not in sequential order, this button will be present.
The Order function will sort by '#' and then the subhits will not be in sorted order; these are referred to as disordered subhits. See Hits.

Gap vs no-gap Cabbage shows the distance between #1 and #2 as -35. Viewing the Cabbage alignment, #327.1 and #327.2 overlap but they do not overlap for A.thal.

Selected Cabbage alignment
Align graphics
Selected A.thal alignment
Align graphics

Gene Details

Information: Hovering the mouse over a gene will show its information in the Information box.
Gene # is a sequential number along the chromosome. If genes overlap, they will have the same number but a different suffix (e.g. a, b,...).
#Exon=is the number of exons followed by their summed sizes.
The next line is the location followed by its total length.
The lines (ID...) are the annotation provided by the GFF file.
If the mouse is over an exon, the last line will be number, e.g. Exon #4.
2d gene information
2d gene graphics    Popup: To view the popup of the gene description, right-click on the gene in the track; the selected gene will turn cyan.
  • The top text is the same as shown in the gene information.
  • All hits for the gene for the chromosome pair will be listed. In this case, the gene has two hits, where the first is a minor hit to the gene and is not part of a block (if the All hits filter is not on, this hit will not be shown).
  • Algo1: Only has (Gene N%). This is the hit-overlap/gene-length, without regard to gaps or introns.
    Algo2: Has (Gene N% Exon N%). The gene overlap will be the same as in Algo1. The exon overlap is the amount of hit that overlap exons divided by the sum of the exons.
2d gene popup

Hit-Gene Details

The example below shows the two genes that are connected by the hit-wire. For the gene popups, the exons are numbered differently; this is due to differences between NCBI and Ensembl annotation files.

2d-desc


Control panel and navigation

History Zoom and Show Color wheel, etc Navigate Go to top

2d controlpanel

The buttons are described in the order found in the control panel image above.

History Event: SyMAP retains a record of the prior views (like a web browser).

Home Go back to its original display.
Back button Go back one history event.
Forward button Go forward one history event.
Plus Doubles the base pair view region, keeping the same center.
Minus Shrinks the base pair view region by 50%, keeping the same center.
shrink The shrink button reduces the space between tracks. This is useful when viewing more than two tracks, e.g see Exp_2D.
scale The scale button resizes the tracks so that they are in the same scale (base pairs per pixel) as the reference sequence track in the view. This is a toggle button, so click it again to undo the scale.

Zoom and Show: These two buttons performs a function on the selected region.

Zoom
FunctionDescriptionButton label
Zoom All Tracks Zoom into the selected region and all other tracks with hits in the region.

Note: If the selection clips part of the hit, the hit-wire will be shown at the top or bottom of the chromosome track. The hit-wire of the clipped hit can be highlighted just like a fully shown hit.

Zoom
Zoom Selected Track Zoom into the selected region; all other tracks do not change. Zoom Select
Show
Align (Max 50kb) Open the base alignment view for the selected region (see Base Align). There MUST be at least a partial hit in the region to align. Show
Show Seq Options The allows viewing the actual basepair sequence in a track. A sequence must first be selected, then a popup menu will have the options:
HitShow the sequences of the clustered subhits on the positive strand. If the hit is on the negative strand, it will be reverse complemented (RC).
Reverse HitShow the sequences of the subhits on the negative strand. If the hit is on the positive strand, it will be reverse complemented.
Full HitConcatenate and show the sequence from the start of the first cluster hit to the end of the last cluster subhit.
RegionShow the sequence from the region selected.
Show Seq

Color wheel, etc:

Color Wheel See Color Wheel, Print and Help.
print Prints the graphics 2D region to an image file (note, this does not include the control bar, etc).
Help Displays the online help.
Info Popup of quick help.

Mouse navigation:

View region  Drag left mouse button Press down on the left mouse button on a chromosome track, drag the mouse and release it. By default, this will zoom into the selected region for both chromosomes. This action can be changed with the Zoom and Show as discussed above.
Resize Track  Drag bottom of track Position mouse at bottom of track (resize cursor appears), hold down left mouse button, and move mouse.
Scroll One Track  Mouse wheel Position mouse over track and use mouse wheel to scroll up/down the track.
Scroll Both Tracks  Mouse wheel Position mouse in the hit space to scroll up/down both tracks.
Popup of partial set of filters  Right mouse button Position mouse over track area (for sequence filter) or white space between tracks (for hit filter), and click right mouse button.

Sequence Filter

Highlight and Show Graphics Hit Text Coordinates 3-track Popup Go to top
Select Sequence Filter button above the sequence track to change the display for the respective chromosome. If the sequence track does not have a given annotation (e.g. Gaps), then that item will be un-selectable.

→ All options in the first 3 sections occur immediately; Coordinates changes occur on Save.
→ Only Coordinates changes are History events.

Highlight
Gene popup Highlight the gene when its Gene Popup is displayed. The highlight color can be changed with the Color Wheel.
Show
Annotation Display of the annotation descriptions along the right side of sequence (see example).
NOTE: this only works if you are zoomed in close enough that the annotation boxes can clearly be displayed.
Gene#Display the Gene# beside each gene. This is the SyMAP assigned number; see Terminology for more details.
Gene delimiter When the zoom is close enough to view the exons, a black line will be drawn over the top end of each gene. This helps delimit genes that do not overlap (so are not staggered), but are close enough to appear one gene (see example below).
sequence filter

Graphics
Ruler Display of the sequence ruler along the right side of the sequence.
Gaps Display of sequence gaps (drawn as solid red rectangles) along the sequence.
Centromere Display of the centromere (drawn as a cyan "X") on the sequence.
Genes Display of the gene with exons along the sequence. (If unchecked, the other gene options are disabled).
Hit length Display the hit length line along the inner boundary of the sequence. The subhits are colored brown and the gaps are colored gray (see example).
Hit %Id bar The Hit length vertical line is at the end of a horizontal line.
• If this is off, the horizontal line is a constant length, taking into account overlapping hits.
• If this is on, the length of the line represents the magnitude of the %Identity value for the hit.
• If the Hit length is not shown, this line is not shown.
The gaps and centromere options are disabled in the image above, as there are none for the chromosome.

Hit Text Show the value along the edge of the sequence track over the hit-wire near the edge of the track. A value of '0' is not shown. The text is only visible if zoomed in, else, it looks like a black thick line. Symbol
Block#If the hit is in a block, its block number will be shown.   bN
Collinear#If the gene-hit is assigned to a collinear set, its collinear set number will be shown.   cN
Hit#The number assigned by SyMAP for the hit.   #N
Hit %IdThe score value corresponds to the %Identity value for the hit from the MUMmer anchor file.   N%
NoneNothing is shown (default).

Coordinates All the following coordinate changes take effect on Save.
Flip sequenceReverses the orientation of the sequence track.
Full Sets the start and end positions of the sequence display to encompass the whole chromosome.
Start and End The positions of the sequence display can be set via the corresponding text boxes. The units of the values entered can be selected from the accompanying drop down menus (BP, KB, MB, GB).
Gene# • Enter a Gene# assigned by SyMAP. It must be exact, i.e. if it has a suffix, the suffix must be included (e.g. 1234.b).
• If the Gene# entry box has a value, it takes precedence over any coordinates changes.
• When Save is selected, the 30kb region around the gene will be shown and the exons of the Gene# will be highlighted. To remove the highlighting, make this text box blank and Save again.
• BEWARE: If the Hit Filter All hits filter is not turned on, you may not see the corresponding gene hits as they may be filtered.

3-track

The Sequence Filter has two extra options, g2g2 and g2g1, for the reference track when it has both a left and right track. sequence filter reference
Hit g2x2The genes conserved across the 3 tracks will be highlighted. The usage of this feature is a little complex, so the section Conserved provides the details.
Hit g2x1The genes conserved on ONLY one side are highlighted.

Sequence Filter Popup: A subset of the filters are available by right clicking in the empty space of the chromosome rectangle, as shown on the right.



Highlighting genes summary:

g2x2, g2x1(Reference, 3-track only) The exons are highlighted.
Filter Gene#The exons, introns and gene delimiter are highlighted.
Gene popupThe exons, introns and gene delimiter are highlighted.
Hit popupThe exons, introns and gene delimiter are highlighted the same color as the hit-wire color.

During a Chromosome Explorer session, Sequence Filters are reset to defaults between different 2D displays.

sequence filter popup

Hit Filter

Highlight Show Other Popup Example Go to top

The Hit Filter menu allows the user to select which types of hits are displayed. Multiple Show options can be selected, but only one Highlight.

Highlight
Synteny blocksHits that are part of a synteny block.
Collinear sets Hits that are part of a collinear set. See example below and Details.
Hit =2 genes Hits that align to a gene on both sides (g2).
Hit =1 genes Hits that align to a gene on one side only (g1).
Hit =0 genes Hits that do not align to any gene (g0).
Hit popup
(or Query)
The Popup-Query highlighting is turned on/off with this option. The following two situations are highlighted with the Popup-Query color:
(1) When a hit-wire Hit Popup is displayed, the hit-wire and any aligned major genes are highlighted.
(2) When the 2D is displayed with Query View 2D option, the selected hit will be highlighted or group of hits will be highlighted; see Groups.
The Popup-Query color can be changed with the Color Wheel.
hitfilterS

Show
Synteny blocksHits that are part of a synteny block.
AndIf any of the below are selected, the hit has to be all selected.
OrIf any of the below are selected, the hit can be any of the selected.
Collinear sets Hits that are part of a collinear set. See example below and Details.
Hit =2 genes Hits that align to a gene on both sides (g2).
Hit =1 genes Hits that align to a gene on one side only (g1).
Hit =0 genes Hits that do not align to any gene (g0).
All hits Show all hits. Precedence: This shows all hits regardless of what else is selected.

Other
IdentityMove the slider to view only the hits with >= the specified identity. Precedence: This works in conjunction with any of the Show option except All hits.
Block#Enter a block number and only hits from that block will be shown. Precedence: This takes precedence over everything but the Identity.

While the filter window is showing, the user can enter a block number following by return to see the block, then try the next one to see the next block. If an invalid block number is entered, no hits will be shown.

Hit Popup

When hits belonging to blocks or collinear sets are highlighted, subsequent blocks/sets will have an alternating color relative to one chromosome of the pair, e.g. set #1 hits will be green, set #2 hits will be pink, set #3 hits will be green, etc (e.g. Example image).

A subset of the highlight filters are available by right clicking in the hit white space, as shown on the right.

During a Chromosome Explorer session, any Hit Filter settings will remain set between different 2D displays.

hit filter popup

Filter Example

The image on the right has the Sequence Filter option of Show Gene Delimiter and the Hit Filter option of Highlight Collinear Hits.

Show Gene Delimiter: Note that the 2nd gene on both tracks would blend in with the 3rd if it was not for the black line at the top.

Highlight Collinear Hits: The highlighted hit-wires are all part of a collinear set. The 2nd hit-wire is not highlighted because it does not hit a gene pair, so is not part of the collinear set, but it does not disrupt the set since it does not hit an annotated gene.

Collinear Highlight and Gene Lines

Base Align

Graphical Align
(from pull-down)
Text align
(from hit popup)
Alternatives Go to top

To build the synteny, SyMAP uses Promer by default for analysis of two different genomes. Promer translates sequences, uses a fast suffix tree alignment algorithm, then converts the coordinates back to nucleotide. To display the alignment in SyMAP, SyMAP performs a semi-global dynamic programming (DP) algorithm on the nucleotide sequences using the MUMmer coordinates, which can produce a slightly different alignment.

Graphical Align (from pull-down)

Check Show on the 2D control bar, then select a region of maximum 50kb, which must have hits. To select a region, drag the mouse along the sequence and release when the desired range is highlighted.

baseview

The aligned base view of the clustered subhits will appears in a new window. This view consists of a ruler along the top showing the area of the sequence covered, the hits, and the genes. In the lower text panel, it indicates that has been trimmed.

Subhits
Subhits are displayed as lines, where red horizontal lines are mismatches, forest green is deletion and a downward arrow is insertion. When two hits overlap, one will be shown above the other. Sometimes one appears to overlap another when they do not; this happens due to gaps.

Clicking on a hit line shows its base alignment view in the bottom of the dialog; if the input genome sequence was soft-masked, the masking is retained in the alignment.

Genes
Annotated genes are displayed below the hits. Blue exons are on + strand and burgundy are on the - strand.

Strand for Algo1: Sometimes it is wrong in the Show Align view. In this image, the A.thal gene is on the negative strand, but its aligned hit is shown on the positive strand. Most of these occurrences have been fixed in v5.4.8, but a few will have slipped through. Align strand

Text Align (from hit popup)

Hover over a hit-wire and right click for the information popup shown on the lower left. The Align Hit option aligns the hit as shown on the lower right. Use the Reverse button to view the reverse complement alignment.
Hit Information    Text view of alignment
Trimmed alignments: SyMAP extracts the sequence between the coordinates provided by MUMmer and aligns the sequence using a dynamic programming algorithm. When the sequences do not align fully, the alignment is trimmed. This is illustrated above for subhit 5, where the Trim 0,13 indicates that 13 bases were trimmed off the end. The un-trimmed alignment can be viewed by selected No trim.

Alternative base views

To view the base alignment, use the Show Seq Option (from the Selected: pulldown). Select the 1st region to be aligned, then select the 2nd region. These two sequences can be copied from the popups, and aligned with online tools such as EMBOSS Matcher or EZ BioCloud (max 5000bp).

Another alternative is to find the hit in the Queries, then view the MSA (either MUSCLE or MAFFT can be used).

Dot Plot #3 (Multi-genome)

All selected projects will be shown in the Dot Plot. The interface is the same as discussed in Dot Plot (Two Genome). The Dot Plot in the image shows three genomes.

General

Self-synteny Data Download Color Wheel, Print and Help (?) Icons Go to top

Self-synteny

Self-synteny can be viewed in all views (see Demo Dot Plot), with the following exception:

Data Download

There are two ways to download data for SyMAP synteny blocks, individual hit anchors, and annotations:

Queries: The results of a query are shown in a table, which can be exported as a CSV or HTML file. The hit sequences can be exported in FASTA format. See Query Export.

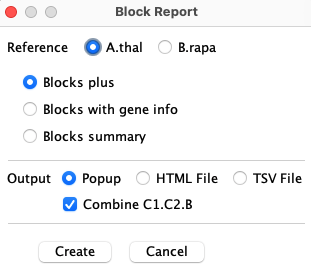

Explorer 2D: Select the species of interest, open the Explorer 2D, and click the Download Blocks button is at the lower left. This exports a table of all the computed synteny block coordinates for all the selected species.

Color Wheel, Print and Help (?) Icons

Most displays have one or more of the following icons (Color, Print, Help, respectively):
icons.

Print The print icon is for printing the image, which only saves the graphics area (not control buttons). If this does not provide the view you want, use the system "Screen Capture" (all the images in this document were created with screen capture, along with the images in the SyMAP publications).

Help The ? icon brings up this web page, typically to the correct section (obviously, there needs to be an internet connection).

Color Wheel This icon opens a menu for customizing colors; the colors changes are saved in a file called .symap_saved_props which resides in the user's home directory. Hence, the changes are preserved between sessions and for different SyMAP databases. In contrast, Filters changes only exist for the duration of the display.

Track Colors Hit Colors Change Colors

Dot Plot tab:

!Block g0Non-block hit to 0 genes
!Block g1Non-block hit to 1 gene
!Block g2Non-block hit to 2 genes
Block g0Block hit to 0 genes
Block g1Block hit to 1 gene
Block g2Block hit to 2 genes
Block RectRectangle around block
  dotplot color
Go to top

Email Comments To: symap@agcol.arizona.edu
